Quality is Our Best Offer

Features

• Lithium Iron Phosphate (LFP) cell guarantees safety and reliability
• Easy to install on the floor
• Suitable for wide range of inverters with 48V system

More Features

• Built-in Lithium Iron Phosphate (LFP) cell with less space and weight.

• Battery module can be easily stacked and added for energy expansion.

• 8000 cycles is for 60% DOD with >50% capacity
• 2000 cycles is for 90% DOD with >80% capacity

Technical Specification

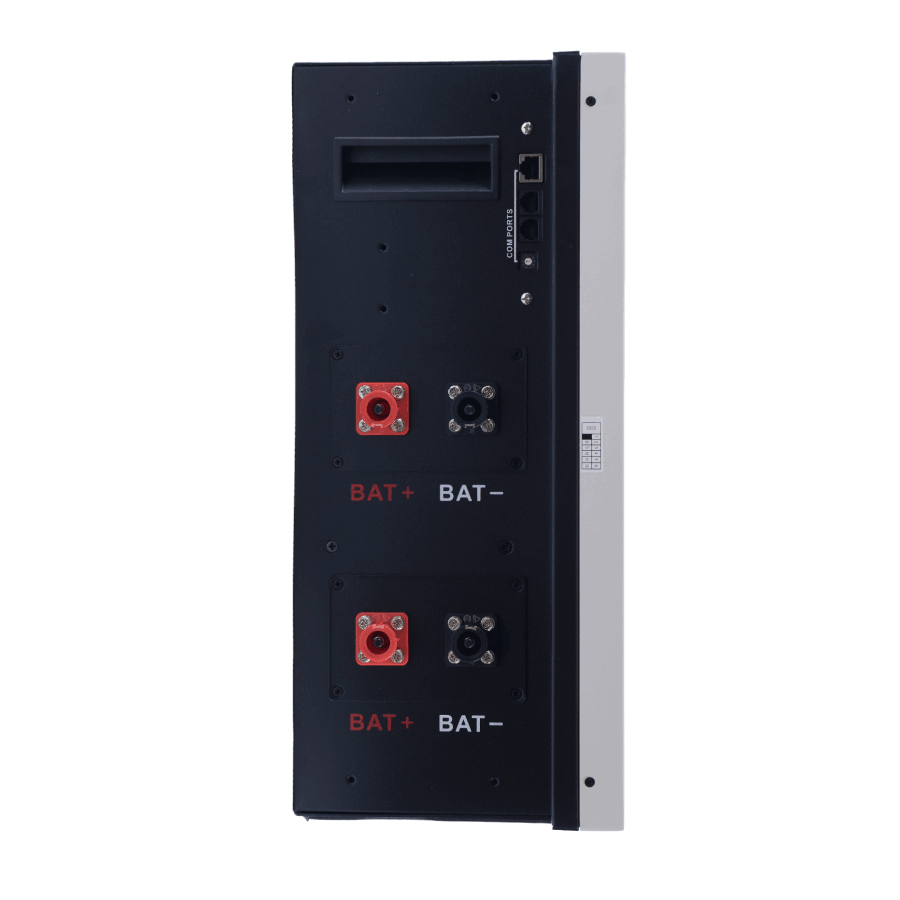

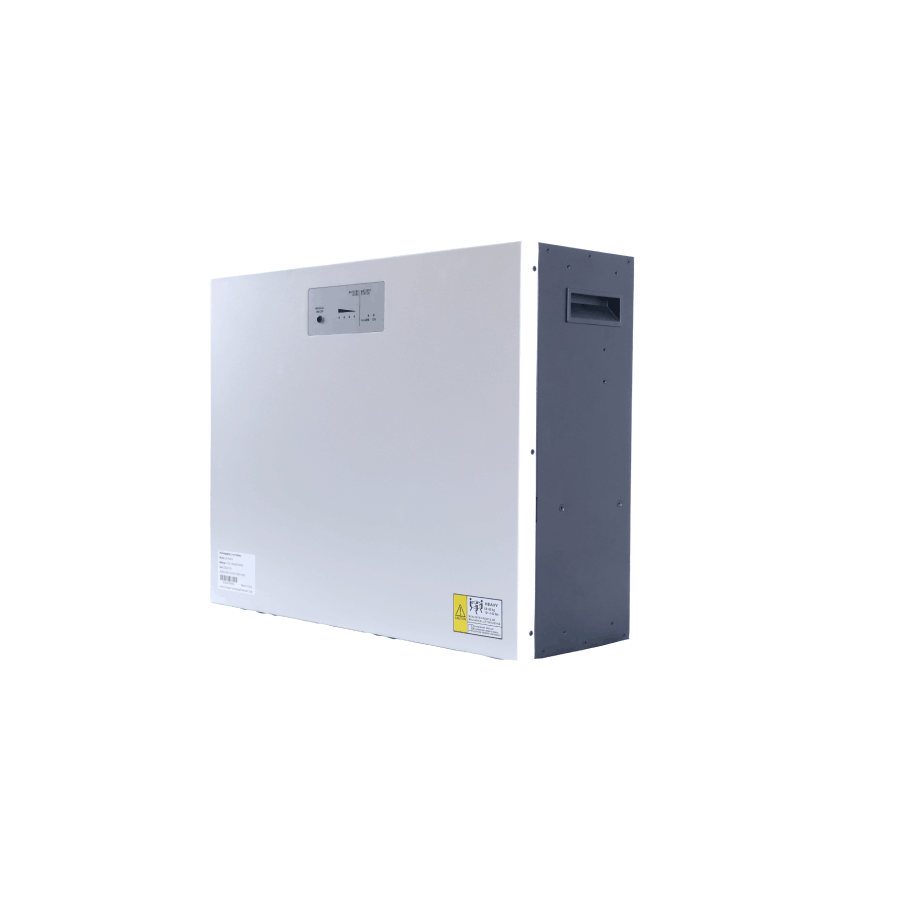

Battery Module: LIO II-4810 (5 kWh, 48V)
Battery Cell Technology: Lithium Iron Phosphate
Applicable Inverter Rating:  5.6 kW
Number of Module: 1
Usable Energy: 150 A
Rated Discharging Current: 150 A
Peak Discharging Current: 192 A, 1 min
Nominal Voltage: 48V DC
Operating Voltage: 38 - 56VDC
Charging Current: 100A Max, 30A Default

General

Operation Charge Temperature: 0°C~50 °C
Operation Discharge Temperature: 0°C~50 °C
IP Protection: IP20
Communication: RS485 port (RJ45), CAN
