Quality is Our Best Offer

Aromatech Luxpower 5k product

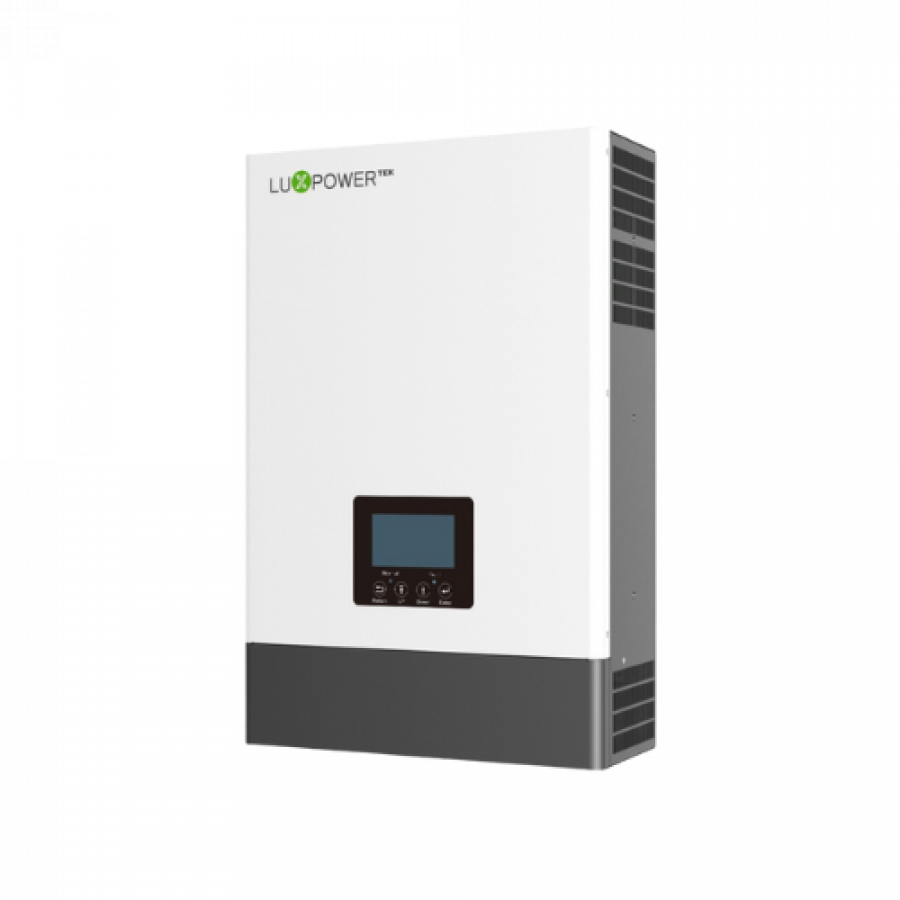

Luxpower 5k

R9085

Incl VAT

Categories :
  • Solar
  • Solar Inverters
  • Residential inverters

offers a range of efficient and affordable off-grid inverters, including the Luxpower 5kW Off-Grid Inverter, Luxpower SNA 5000, and Luxpower ECO Hybrid SNA 5K. These inverters are designed to provide power to homes, with or without grid power, and are compatible with a variety of battery types, including lithium and lead-acid.

The Luxpower 5kW off-grid inverter is a DC to AC power inverter with a built-in battery charger and MPPT solar charge controller, allowing for maximum power generation from solar panels. It is also generator-ready and can be used as an off-grid power source, providing freedom from the grid.

The Luxpower 5kW Off-Grid Inverter is compatible with a variety of battery management systems, including BYD, CFE Battery, Dyness, Pylontech, Revov, Shoto, and UZ Energy. It has a surge power capacity of 10000VA and is rated for 5000W/5000VA.

OUTPUT DATA

  • Rated power: 5000W/5000VA.
  • Parallel capacity: YES.
  • Normal output voltage: 230/240, Split phase 220/110 Vac *
  • Normal output frequency: 50/60Hz.
  • Surge power: 10000VA.
  • Switch time: 10ms.
  • Waveform: Pure sine wave.
  • Battery Type: Lithium/Lead-Acid.
  • Normal Voltage: 51.2V/48V.
  • Max. Charge Voltage: 59V.

SOLAR DATA

  • Max. Recommended PV Power: 3200W/3200W.
  • MPPT Tracker: 2.
  • Max. PV Open Circuit Voltage: 480Vdc.
  • MPPT Voltage Range: 100-385Vdc.
  • Max. Solar Charge Current: 100A.
  • Max. Solar Input Current: 13A/13A.
  • Parallel MPPT Charger: YES.

GRID DATA

  • Normal Voltage: 230Vac.
  • AC Voltage Range: 110-280Vac.
  • Max. Charge Current: 60A.
  • Frequency Range: 50/60Hz(Auto Sensing).

INTERFACE

  • Display: LCD+LED.
  • Lithium Battery Communication: CAN/RS485.
  • RS485/Dry Connector: YES/YES.
  • Wifi/GPRS: YES/YES.

SPECIFICATIONS

  • Dimensions(W/H/D): 330x504x135mm.
  • Weight14Kg.
  • Protection DegreeIP20.
  • Relative Humidity5%~95% Relative Humidity(Non-condensing).
  • Operating Temperature0°C~50°C.
  • Storage Temperature-15°C~60°C.
  • Warranty: 2 years.
