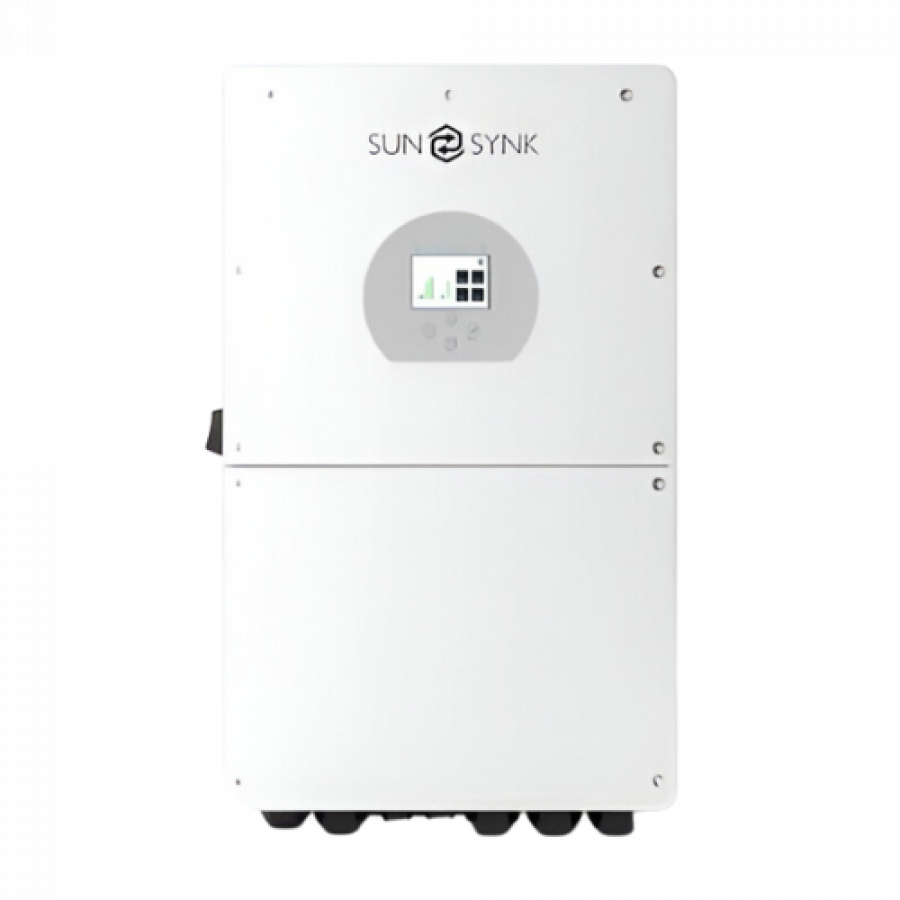

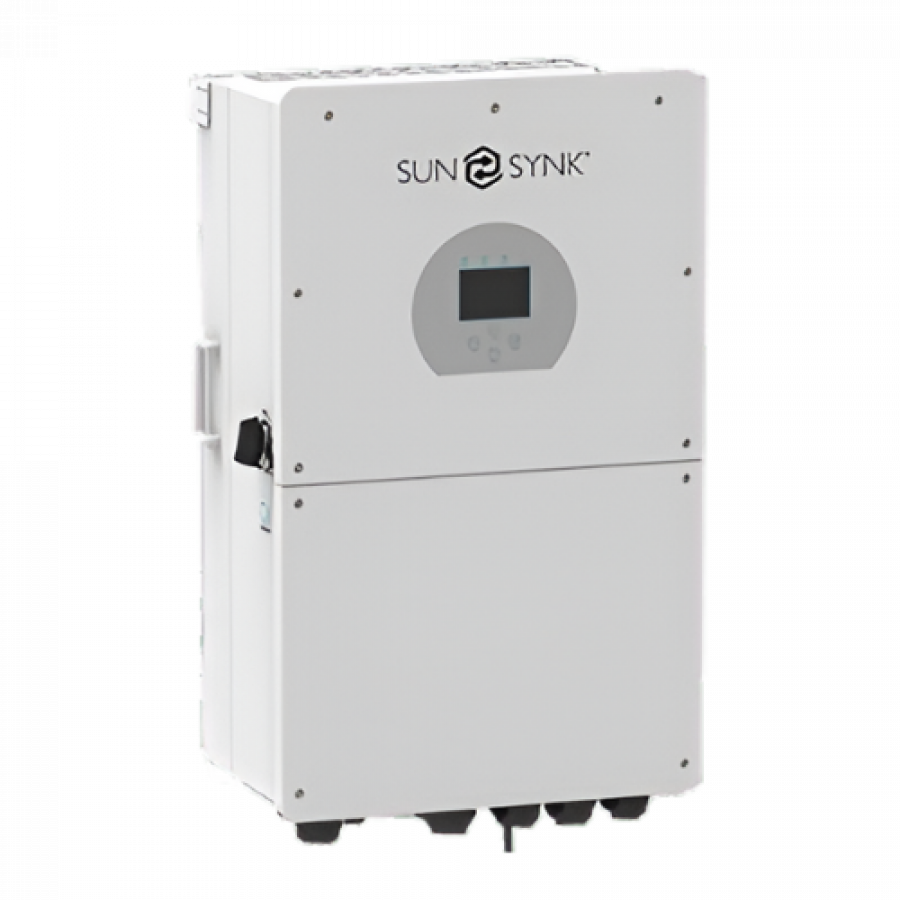

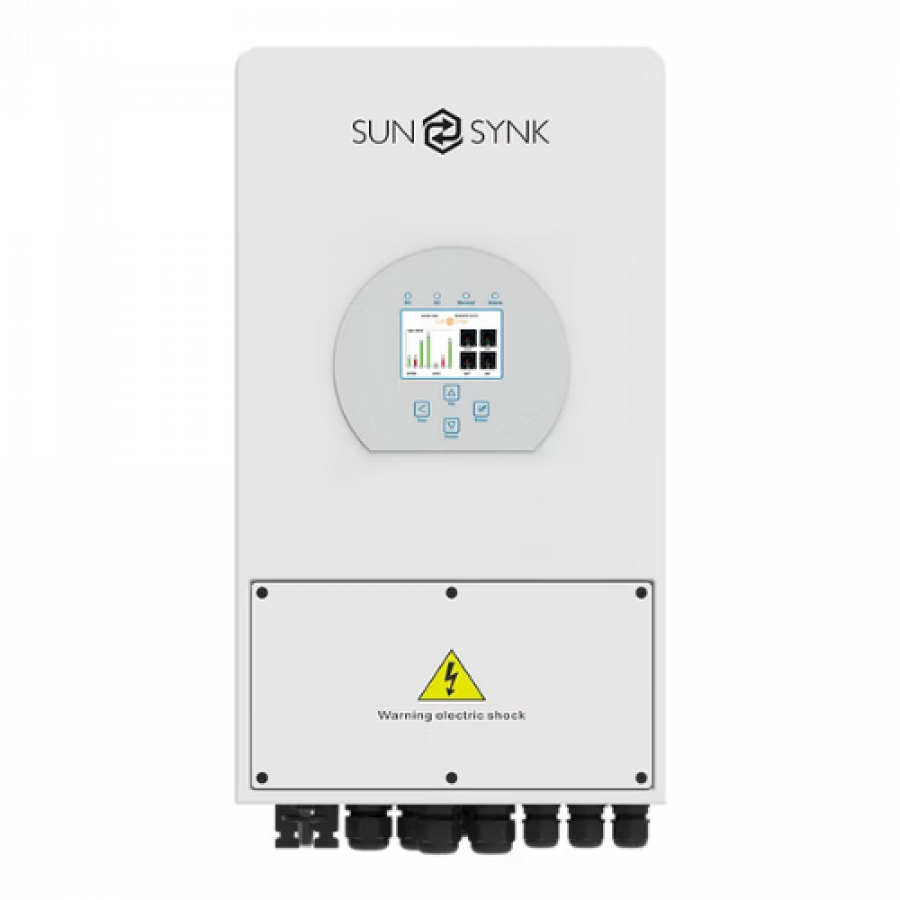

Main Features
- The largest single-phase hybrid Inverter on the market.
-
A total of 15 x inverters can be connected in a three-phase configuration (five units per phase) – giving a maximum power output of 240kW.
- 3 x inverters can be connected in a single-phase configuration giving a total power of 48kW.
- Contains 3 x MPPTs to allow for flexible PV array designs and improved efficiency.
-
Programmable multiple operation modes: on-grid/off-grid & UPS.
IP65 protection rating – suitable for most outdoor installations.
-
Wi-Fi dongle as standard – enabling remote monitoring via the Sunsynk cloud
INTERACTIVE
- Supporting Wi-Fi or GSM monitoring
- Visual power flow screen
Parallel / multi invert function grid-tied and off-grid
COMPATIBLE
- Compatible with main electrical grid voltages or power generators
- Self-consumption and feed-in to the grid
Auto restart while AC is recovering
- Auto earth bond feature (Via a relay)
CONFIGURABLE
- Fully programmable controller
- Programmable supply priority for battery or grid
- Programmable multiple operation modes: on-grid/off-grid & UPS
Configurable battery charging – current/voltage based on the application
- Configurable AC / solar / generator charger priority by LCD setting
SECURE
- Overload/over-temperature/short-circuit protection
- Smart battery charger design for optimized battery protection
-
Limiting function installed to prevent excess power overflow to grid
Specifications
- Battery Input Data
- Battery Type Lead-acid or Lithium-ion
- Battery Voltage Range 43~60V
-
Max. Charging Current 275A
- Max. Discharging Current 300A
- Charging Curve 3 Stages/Equalisation
External Temperature Sensor Yes
Charging Strategy for Li-Ion Battery Self-Adaptation to BMS
AC Output Data
-
Max. On-Grid AC Power 16000
- Max. Off-Grid AC Power 13000W
- Peak Power (off-grid) 2 times of rated power, 10 S
- AC Output Rated Current 65A
- Max AC Current 70A
- Max Continuous AC Passthrough 200A
Frequency Range 45Hz ~55Hz
Voltage Range 211V ~ 264V
Grid Type Single-Phas
Current Harmonic Distortion THD
Efficiency
- Max. Efficiency 97.60%
- Euro Efficiency 97.00%
- MPPT Efficiency 99.90%
Protection
- Integrated – PV Input Lightning Protection
- Anti-islanding Protection
- PV String Input Reverse Polarity Protection
- Insulation Resistor Detection
- Residual Current Monitoring Unit
- Output Over Current Protection
- Surge protection
Certifications and Standards
- Grid Regulation – VDE 0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IEC61727, RD1699:2011, XP C15-712-3:2019-05
- Safety EMC / Standard – IEC62109-1, IEC62109-2, EN61000-6-1, EN61000-6-3
General Data
- Operating Temperature Range -25~55 C
- Cooling Fan
- Noise Communication with BMS RS485; CAN
- rotection Degree IP65
- Installation Style Wall-mounted
