Luxpower LXP 10k

R32085

Incl VAT

Categories :
  • Solar
  • Solar Inverters
  • Residential inverters

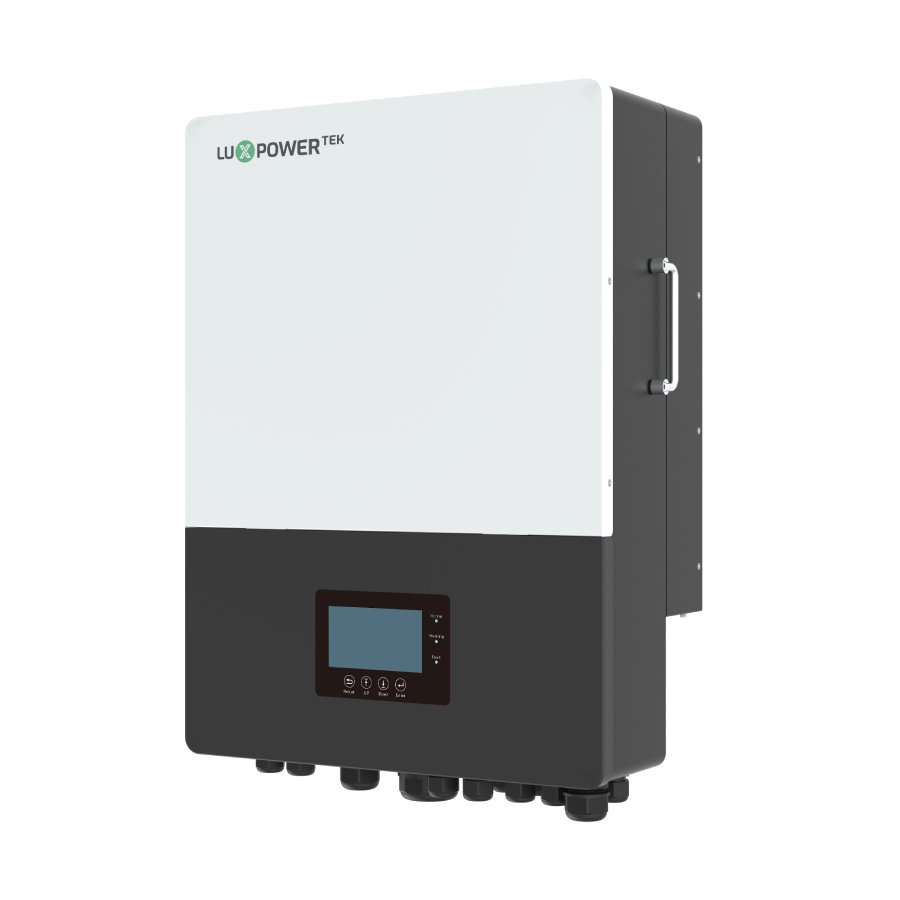

Lux Power 10KW Hybrid LV Single Phase (LXP10K)

Luxpower 10kW Hybrid Inverter, model LXP10K is ready to take your solar system to the next level. The Luxpower 10Kw Hybrid Inverter is an inverter for solar panels an inverter for solar power. This solar inverter with battery and solar panels converts the DC electricity generated by your solar panels into AC electricity. It has the ability to connect with solar panels and store energy in the lithium ion battery.

General Information

Battery Parameters

  • Compatible Battery Type: Lead-acid / Lithium
  • Nominal Battery Voltage: 48VDC
  • Battery Voltage Range: 40VDC-60VDC
  • Maximum Charge / Discharge Current: 210A

  • Maximum Charge / Discharge Power: 10 000W

DC PV Input

  • Max DC Input for Single MPPT: 12 000W / 7 000W / 7 000W

  • Maximum PV Input: 16 000W

  • DC Input Voltage Range: 100VDC-600VDC

  • Nominal DC Input Voltage: 360VDC

  • Full Power MPPT Voltage Range: 210VDC-500VDC

  • Maximum DC Input Current: 25A / 15A / 15A

  • MPPT Number / Strings per MPPT: 3(2/1/1)

AC Output (Grid)

  • Nominal Power: 10 000W

  • Nominal AC Voltage: 240VAC
  • Operating Voltage Range: 180VAC-270VAC

  • Maximum Continuous AC Current: 41.6A @ 240VAC

  • Nominal AC Frequency: 50Hz / 60Hz

UPS Output (With Battery)


  • UPS Max Output Power: 10 000W

  • UPS Nominal Output Voltage: 240VAC

  • UPS Nominal Output Frequency: 50Hz / 60Hz

  • UPS Nominal Output Current: 41.6A @ 240VAC

  • Peak Power: 14Kw 10Min / 16Kw 5 Min / 20Kw 500ms

  • Switching Time: <20ms

Environment Limit

  •
 Ingress Protection: IP65

  • Operating Temperature Range: -25°C to +60°C

  • Cooling: Fan

  • Communication: RS485 / WIFI / CAN
